Item specifics
  • Support Apt-x: No
  • Sound Track: Single
  • Interface: 3.5mm
  • Brand Name: WFXSTD
  • WIFI Standard: None
  • Content: Audio&Video
  • Feature: None
  • Wireless Type: NFC
  • Support AAC: No
  • Bluetooth Standard: Bluetooth v1.1
  • Package: No
  • Model Number: HSV192
  • Manufacture Factory: Hotspot Tech HK Idustril Limited
  • Function: SD-SDI/HD-SDI and 3G-SDI To VGA
  • Transmission Distance: 120 meters(393ft) SDI transmission
  • power management: Support power management
  • Remote Wakening: support remote wakening
  • Size: 9.4*9.4*6.8cm(3.7*3.7*2.7in)
  • Color: black
  • Application Field: Security monitoring line
  • Keyword: Mini SD-SDI/HD-SDI and 3G-SDI to VGA Converter with SDI loop out
  • is_customized: Yes
Product Description

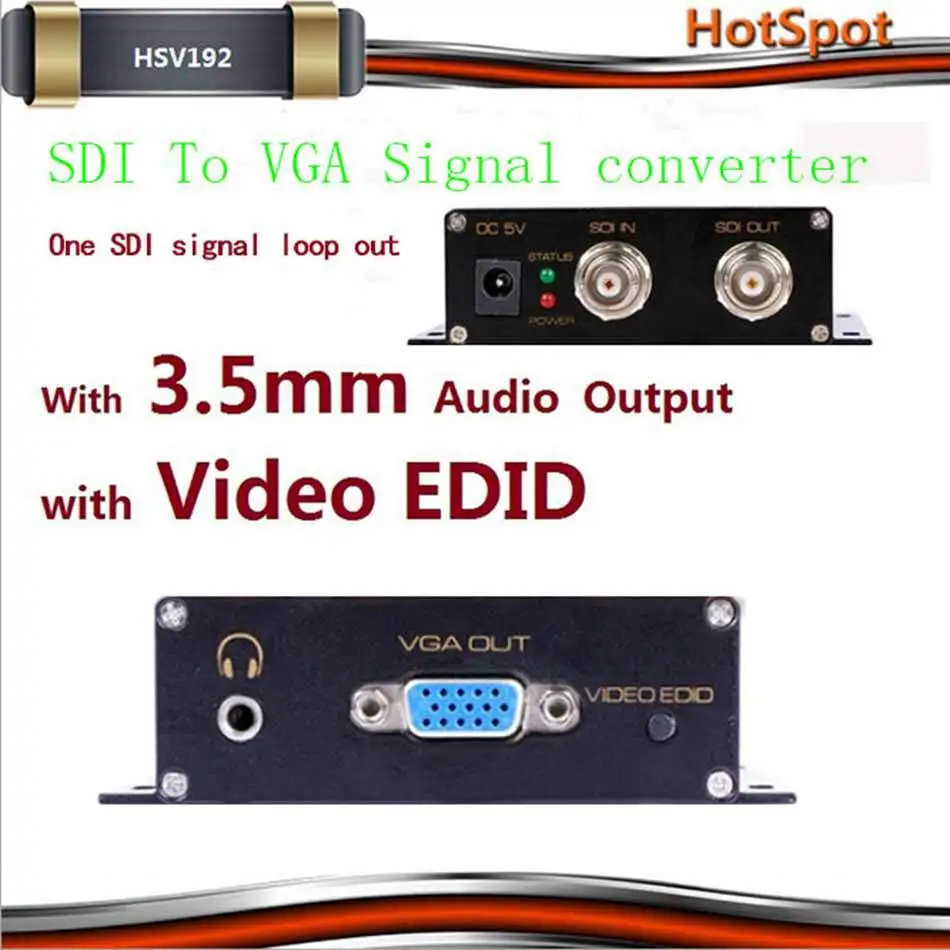

HSV192 Mini  SD-SDI/HD-SDI and 3G-SDI to VGA Converter with SDI loop out Converter audio and video converter Free Shipping

function

SDI(serial digital interface):


    SDI interface is an acronym of digital serial interface(serial digital interface). Serial interface transmit every bit of data word and the corresponding data through a single channel transmission . Because the data rate of serial digital signal is very high, it must be treated before delivery.


VGA(Video Graphics Array):

    The VGA interface is a kind of type D interface that belongs to the analog signal.there have 15 pin hole which divided into three rows, each row has five.Among them, in addition to two NC (Not Connect) signal, 3 root display data bus and five GND signal, the more important is the three RGB color component signals and 2 scanning synchronization signal HSYNC and VSYNC needle.Color components used  RS343 level standard in VGA interface.The level standards of RS343 Peak voltage is one volt.

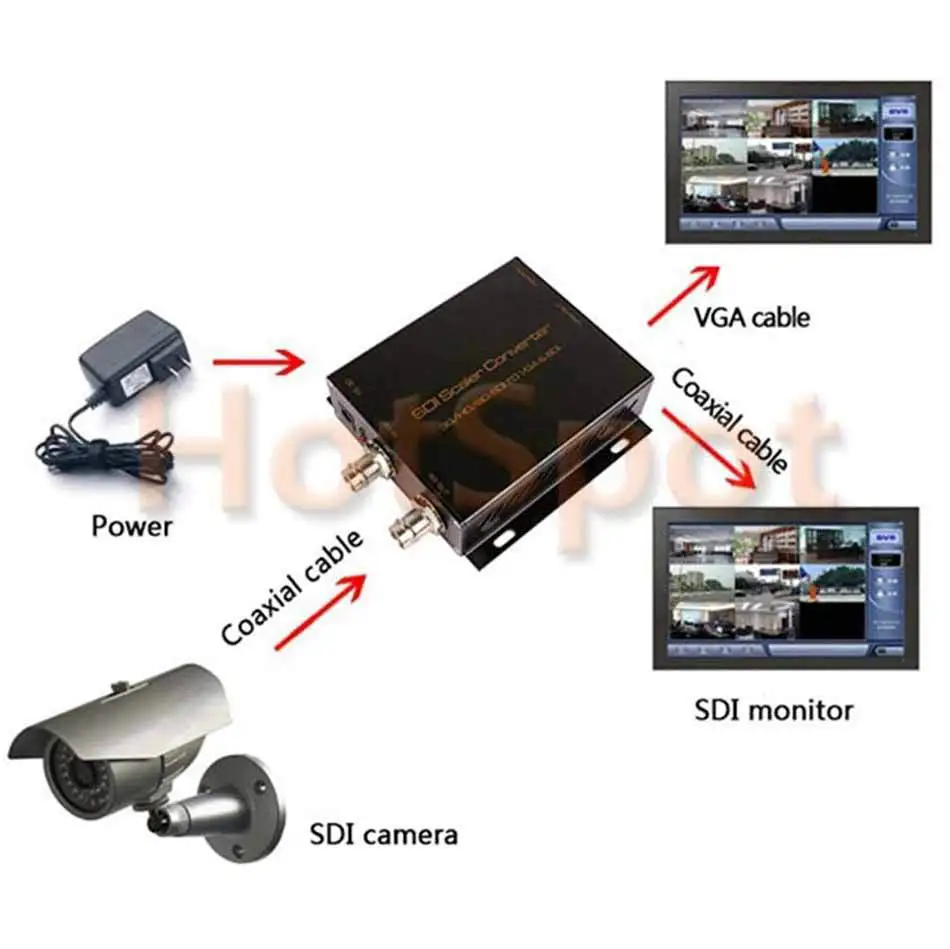

    The converter can convert the single SD-SDI, HD-SDI and 3G-SID signal to VGA signal.It integrates the SDI receiver and the VGA modulator, which can change the SD-SDI,HD-SDI and 3G-SDT signal to VGA signal conveniently and support one SDI signal loop output for connect the other SDI to VGA Converter to do cascade connection.With inside scaler, customer also could change the resolution of VGA output to support different display device.





features

1. Support cascade connection mode for big projects.
2. Set different VGA output resolution to support different display terminal.
3. Adaptive scaler&TrueColor technology ensure video signal quality and display effection.
4. Enhanced HD signal processing technology supports maxim 120 meter SDI transmission.
5. Industry standard design, 365*24 hours uninterruptible working.
6. Supports wide range input voltage from 5V - 12V.



spec


Technical Specification
Standard Power Input 5V
Power Consumption 5W
SDI Input BNC(SDI/3G-SDI/HD-SDI)
SDI Output BNC Loop Out
VGA Output Female 15 pins VGA Port
SDI Transmission 270Mbps / 1.485Gbps / 2.97Gbps
SDI Input
Resolution Supported
480I@60Hz/576I@60Hz
720P@50Hz/720P@ 60Hz/1080I@50/60Hz/1080P@25Hz/ 1080P@30Hz
1080P@50/60Hz
VGA Output
Resolution Supported
800X600@60Hz / 1024X768@60Hz / 1280X720@60Hz
1360X768@60Hz / 1920X1080@60Hz
Package Contents Converter *1    Power Adaptor*1    Manual *1
Operating 0°C - 60°C
Storage Temperature -20°C - 80°C
Humidity 20% ~ 90% RH(Non-condensing)


1-11sell-point product-Display

3--1 3--3 3--4 3--5 3--2










about-spot
    HotSpot focuses on providing  create new meanings  and innovative high speed data, video, audio transfer and convert devices. Our products are well received by customers in Europe, the US, Asia, the Middle East, Africa and Australia, building a good reputation and making great market share.
    With our industry leading kernel R&D team, Hotspot keep invest on new product developing and provide top level one-stop ODM/OEM service for our customers.





spec1-91-10    We offer 12 months guanteen. During the guarantee period,you can send back the damanged goods and we will send you good one with your next order. But this does not cover human damage or misuse of product.
